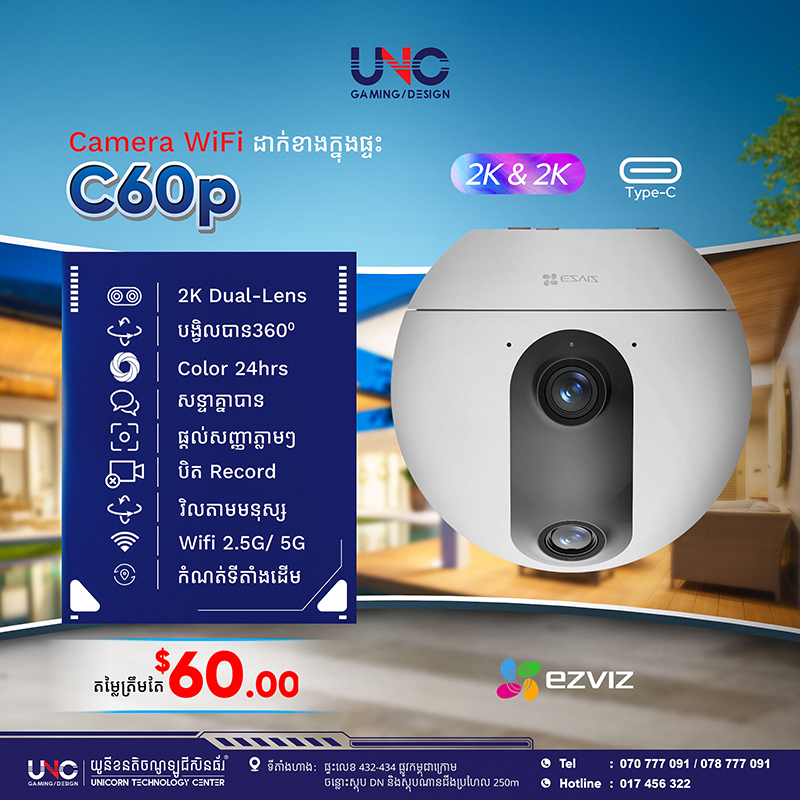

Ezviz C60p

Price:

$
60.00

Product Detail

Ezviz C60p

Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Shutter Speed Self-adaptive shutter
UP Lens

2.8mm@F1.6 ,

view angle: 108° (Horizontal), 103°(Vertical)
DN Lens

2.8mm@F1.6 ,

view angle: 108° (Horizontal), 103°(Vertical)
Lens Mount M12
Day & Night IR-cut filter with auto-switching
DNR 3D DNR
WDR Digital WDR
Compression
Video Compression H.264/H.265
Video Bit Rate Adaptive bit rate
Max. Resolution

Upper camera: 2K (2048 × 1296)

Bottom camera: 2K (2048 × 1296)
Frame Rate Max. 15fps; Self-adaptive during network transmission
Network
Smart Alarm Motion detection, AI-powered human shape detection, patrol mode detection
Pairing Bluetooth pairing
Protocol EZVIZ cloud proprietary protocol
Interface Protocol EZVIZ cloud proprietary protocol
Interface
Storage Supports microSD card (max. 512 GB)
Power Type-C
Wi-Fi
Standard IEEE802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax
Frequency Range

2.4GHz: 2.4 GHz ~ 2.4835 GHz

5GHz: 5.150GHz~5.250GHz
Channel Bandwidth

2.4GHz Supports 20MHz

5GHz Supports 80MHz
Security WPA-PSK, WPA2-PSK,WPA3-Personal
Transmission Rate

2.4GHz Max. Rate Support: 11b_11M, 11g_54M, 11n_MCS7_20M, 11ax_MCS11_20M

5.15-5.25GHz Max. Rate Support: 11a_54M, 11n_MCS7_20-40M, 11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M
Output Power(EIRP) 20 dBm
Antenna Gain 2.56dBi@2.48GHz, 3.18dBi@5.22GHz
General
Operating Conditions -10°C to 45°C, Humidity 95% or less (non-condensing)
Power Supply DC 5V/2A
Power Consumption 8W max
IR Range MAX. 10 meters (33ft)
Dimensions 95 × 96 × 90 mm (3.74 × 3.78 × 3.54 inch)
Packaging Dimensions 116 × 116 × 165 mm (4.61× 4.61× 6.5 inch)
Net Weight 222 g
Bare Weight 500 g
In the box
In the box - C60p Dual Mix 2K Camera
- Power Adapter
- Power Cable
- Drill Template
- Inclined Mounting Plate
- Mounting Plate
- Screw Kit
- Regulatory Information × 2
- Quick Start Guide
