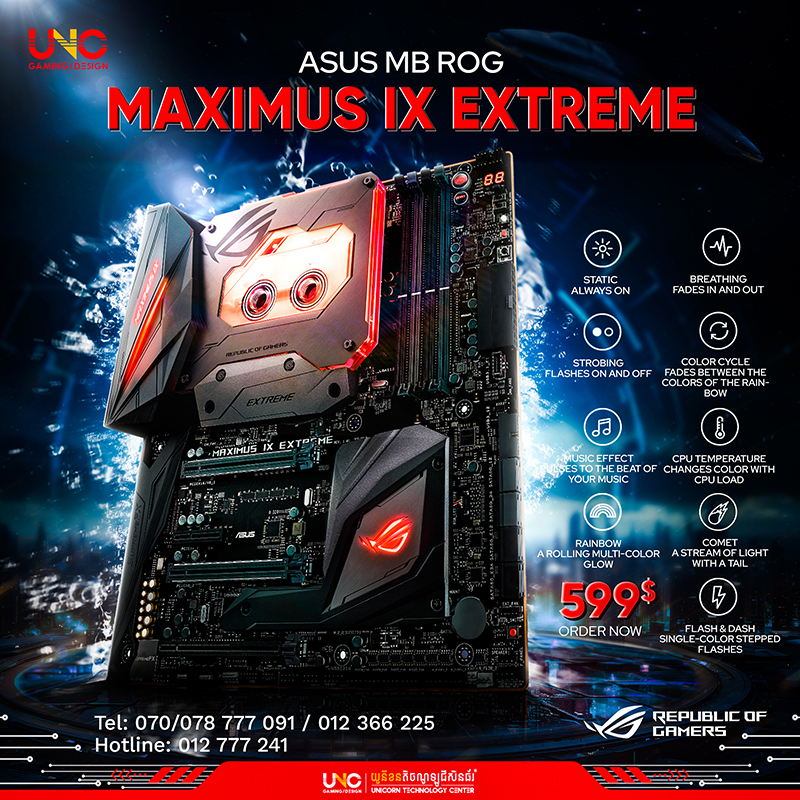

ASUS MB ROG MAXIMUS IX EXTREME (CPU Support Gen 6 & 7) ( 4x DDR4, MAX 64GB, 4133(OC) MHz / M.2 Slots x2 / WIFI / Display Port x1 / HDMI x1 / Clear CMOS Button x1 / EATX )

Price:

$
599.00

Product Detail

Back IO

Audio

  • 5x Analog Audio Jack
  • 1x Optical SPDIF Out

Network

  • 2x Antenna Port
  • 1x RJ-45

USB

  • 6x USB 3 Gen 1 Type-A
  • 1x USB 3 Gen 2 Type-A
  • 1x USB 3 Gen 2 Type-C

Video

  • 1x DisplayPort
  • 1x HDMI Out

Internal Connections

Fans

  • 8x 4-pin Fan Header

Misc

  • 2x RGB Header
  • 1x ROG Extension Header
  • 1x TPM Header

Power

  • 1x 24-pin ATX Power
  • 1x 4-pin 12V Power
  • 1x 8-pin 12V Power

Storage

  • 8x SATA3

USB

  • 2x USB 2 Header
  • 1x USB 3 Gen 1 Header
  • 1x USB 3 Gen 2 Header

Misc. Information

PCB Color Black
Other Colors
  • Black
  • Gray
  • Red
LED Color RGB



Network

Wired

Amount Chip Speed For IPMI
1x Intel I219-V 1000 Mbit No



Wireless

Bluetooth Version 4.1
Wifi 5GHz Support Yes
Wifi Protocol 802.11 a/b/g/n/ac



Expansion Slots

Slots

  • 1x PCI-E 3.0 x16 @ x16
  • 1x PCI-E 3.0 x16 @ x8
  • 1x PCI-E 3.0 x16 @ x4
  • 1x PCI-E 3.0 x4 @ x4

Crossfire & SLI

AMD Crossfire Yes
Nvidia SLI Yes

Audio

Audiochip This board has no onboard audio
Audio Channels



Memory

This board has 4 slots with the following specifications:

Slot Protocol DDR4
Slot Type 288-pin DIMM
Maximum Speed 4133 MHz
Maximum Capacity 64 GB
Maximum Channels 2
ECC support No



M.2 Slots

M.2 Connections

Amount Slot Sizes Speeds
1x M-Key 2242, 2260, 2280, PCI-E 3.0 x4, SATA3,
1x M-Key 22110, 2242, 2260, 2280, PCI-E 3.0 x4, SATA3,



Reviews

Reviewer Review Language Review Type Review Date
No reviews found

Brand & Category: ASUS, Motherboard
